Zigbee TUYA WiFi Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Wireless Remote Control Switch
Zigbee TUYA WiFi Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Wireless Remote Control Switch
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /11/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
SPECIFICATIONS
Accuracy Class : 1%
Battery Included : No
Brand Name : EARUELETRIC
Certification : CE
Choice : yes
DIY Supplies : Electrical

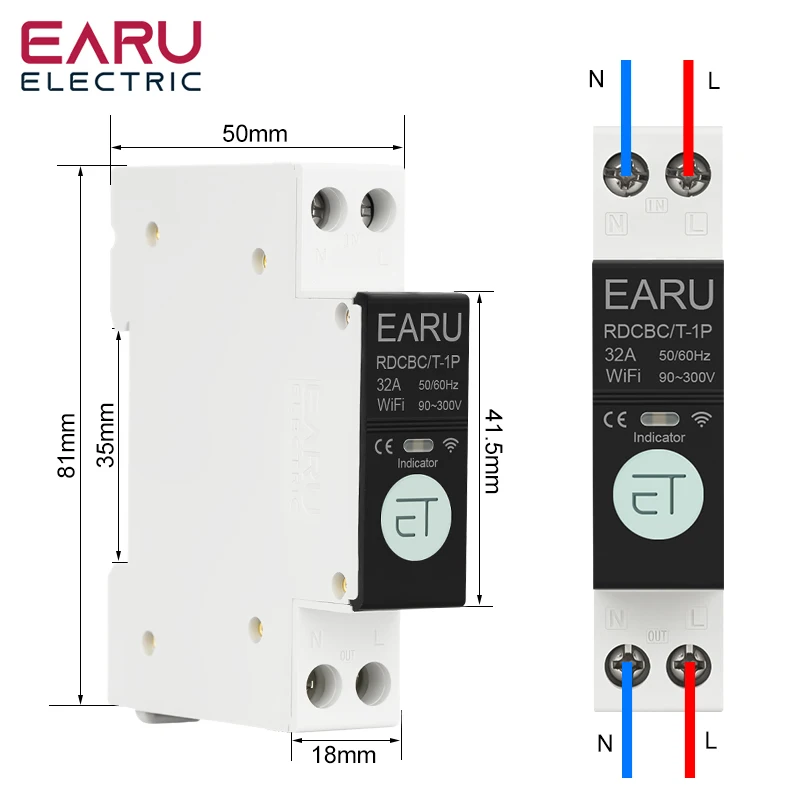

Dimensions : 81*18*50 mm
Display Type : Digital Only
High-concerned chemical : None
Max Operating Current : 50A - 79A
Model Number : EAKCB-TM
Origin : Mainland China
Output Voltage : AC90-240V
Phase : single phase
Power Supply : AC
Rated Voltage : 220V

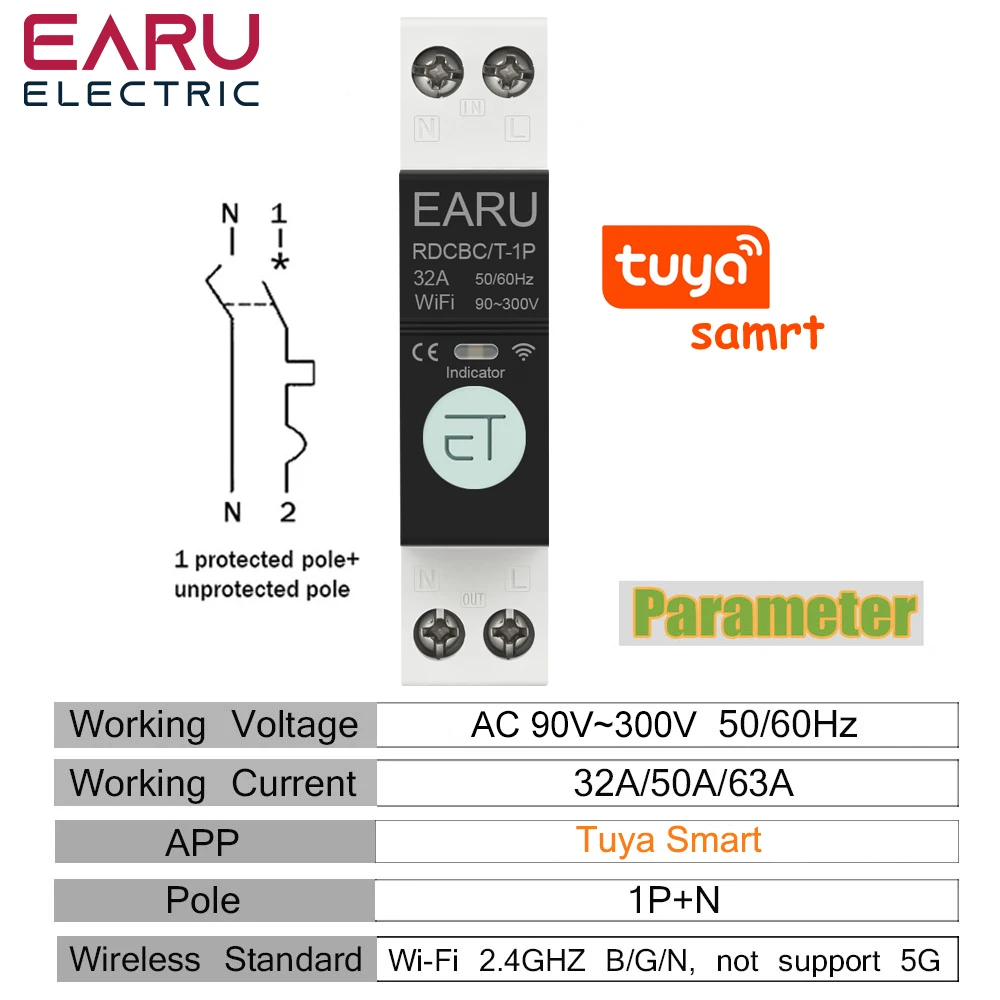

Wiring:
neutral (L+N)
The Black model has no power meter function

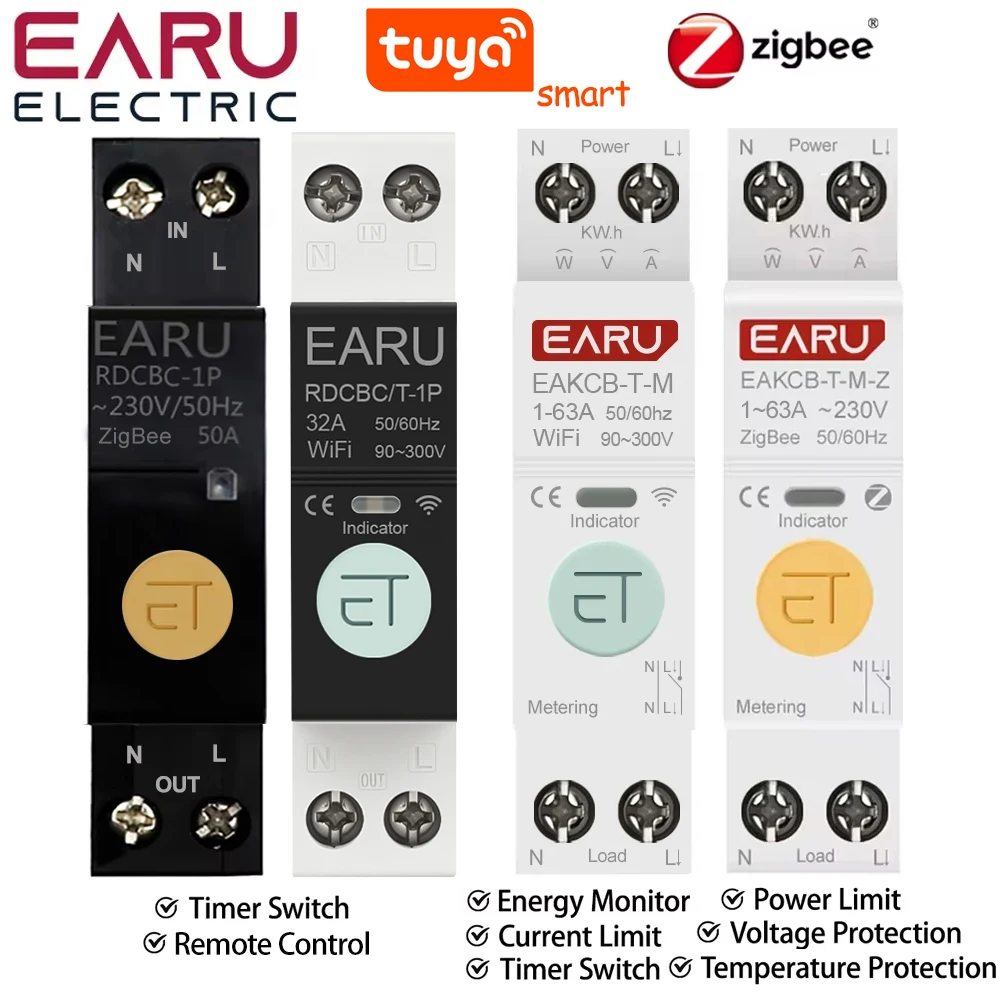

Black model is pure switch type, white model is multi-function type.
Functions:
1.Current Litmit(1-63A adjustable)
2.Power Limit(1-26KW adjustable)
3.Over-Voltage Protection(220-265V adjustable)
4.Unde-Voltage Protection(76-240V adjustable)
5.Temperature Protection(40-150℃)
6. Energy Monitor
7. Timer Switch
8. Remote Control ON/OFF
Remote control at anytime from anywhere your mobile phone can get Internet signal by TUYA APP/Smart Life APP, no distance limit
Voice control by Amazon Alexa Echo/Google Assistant
Specificaions:
Working Voltage: AC90-280V, 50/60Hz
Wireless Type: Wi-Fi 2.4GHz
Support system: Android/IOS
Installation: 35mm DIN Rail
Mechanical Life: Over 100000Times ON/OFF Switch
Note: The circuit breaker has undergone a complete upgrade in its appearance and you can refer to the following picture for the actual product.
Description
Description
SPECIFICATIONS
Accuracy Class : 1%
Battery Included : No
Brand Name : EARUELETRIC
Certification : CE
Choice : yes
DIY Supplies : Electrical
Dimensions : 81*18*50 mm
Display Type : Digital Only
High-concerned chemical : None
Max Operating Current : 50A - 79A
Model Number : EAKCB-TM
Origin : Mainland China
Output Voltage : AC90-240V
Phase : single phase
Power Supply : AC
Rated Voltage : 220V
Wiring:
neutral (L+N)
The Black model has no power meter function
Black model is pure switch type, white model is multi-function type.
Functions:
1.Current Litmit(1-63A adjustable)
2.Power Limit(1-26KW adjustable)
3.Over-Voltage Protection(220-265V adjustable)
4.Unde-Voltage Protection(76-240V adjustable)
5.Temperature Protection(40-150℃)
6. Energy Monitor
7. Timer Switch
8. Remote Control ON/OFF
Remote control at anytime from anywhere your mobile phone can get Internet signal by TUYA APP/Smart Life APP, no distance limit
Voice control by Amazon Alexa Echo/Google Assistant
Specificaions:
Working Voltage: AC90-280V, 50/60Hz
Wireless Type: Wi-Fi 2.4GHz
Support system: Android/IOS
Installation: 35mm DIN Rail
Mechanical Life: Over 100000Times ON/OFF Switch
Note: The circuit breaker has undergone a complete upgrade in its appearance and you can refer to the following picture for the actual product.
